Event Logging - GPIO Configuration Guide - Spider 8

GPIO Pin Description

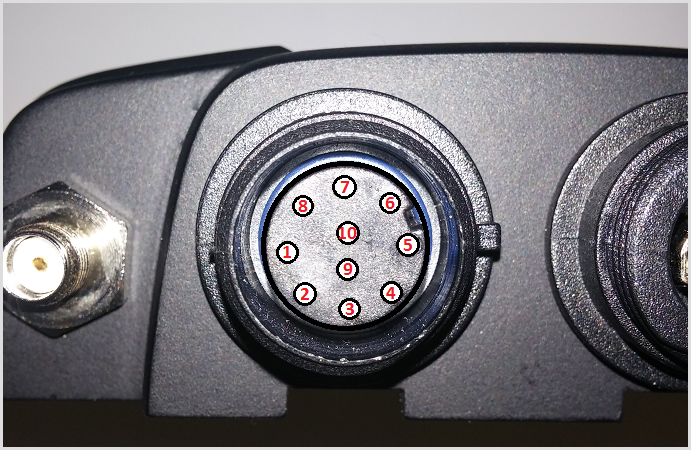

Location of Pins



GPIO Pin Usage

The Isolated GPIO input is quite different to the Non-isolated GPIO input:

• To detect a situation where it is either ground or no ground, we should use a Non-isolated GPIO input;
• In a situation where we need to detect a signal either a voltage or a ground, we should use an Isolated GPIO input.
• Also we should always make use of the Isolated GPIO input common ground pin when we want to use an Isolated GPIO input;
• the voltage or ground must be recognized by the Spider GPIO interface for it to work.

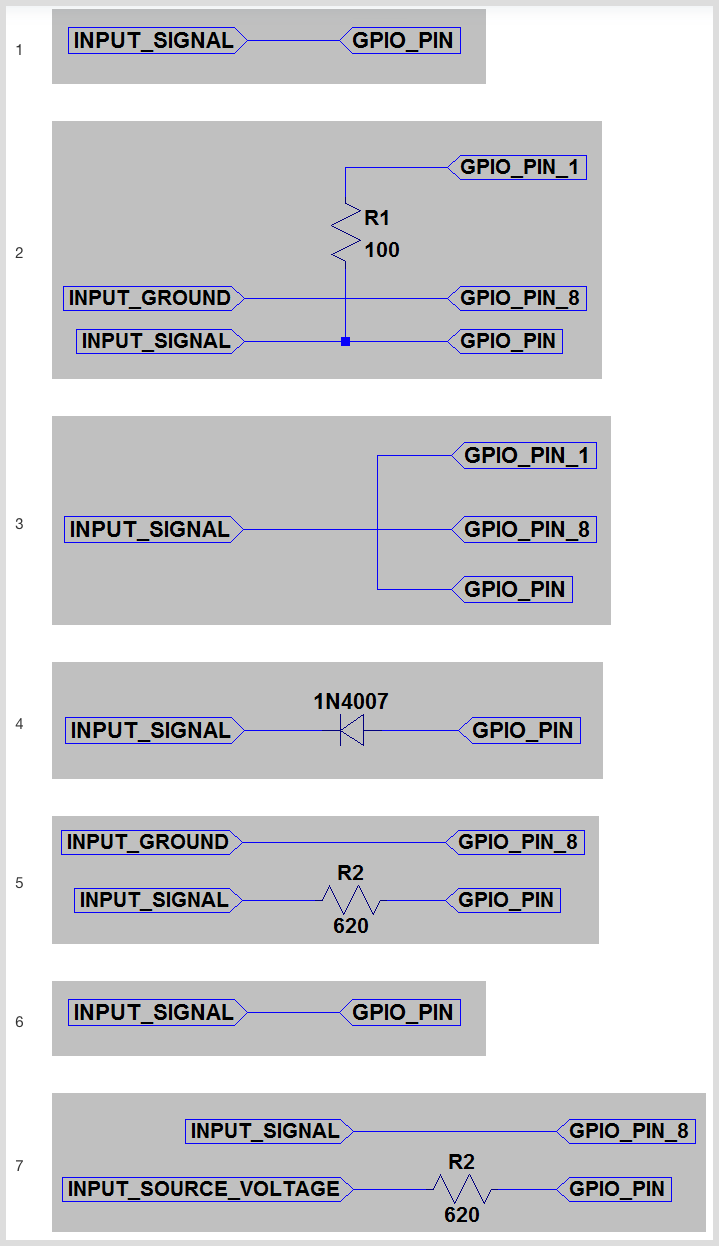

Input Signal Classification

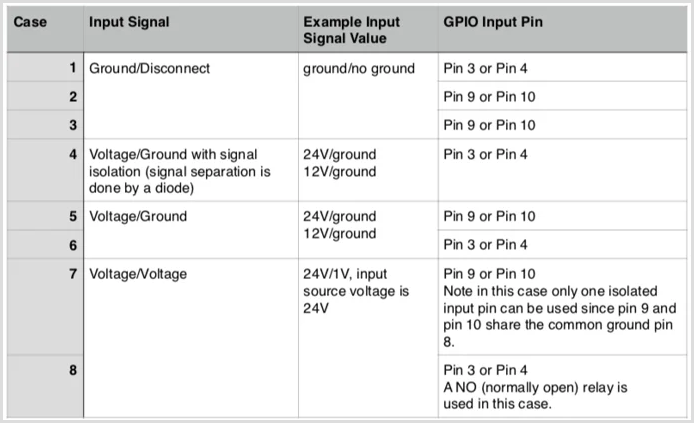

The GPIO input signals can be classified as below:
