Power lead - Wiring diagram For Spiders 1 to 8

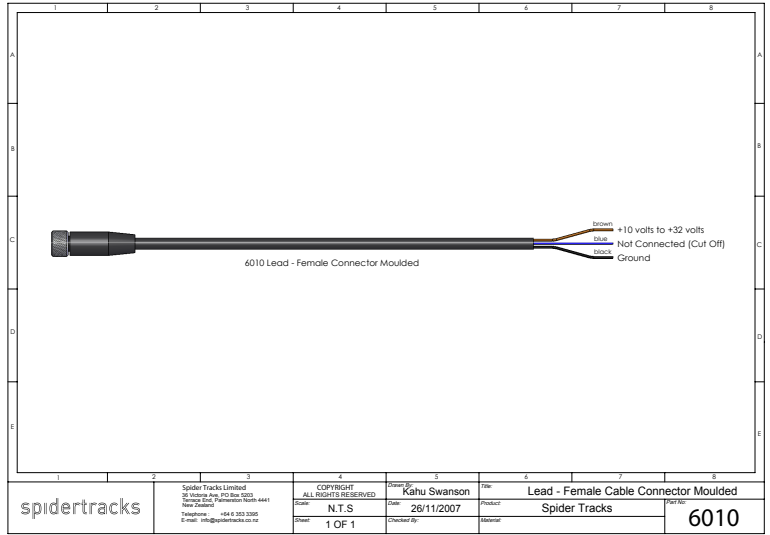

This is the power lead wiring diagram for the Spider 1 to 8.

If you use the cigarette lighter plug, Spiders are considered a portable device, if you hardwire the Spider, this can be considered a minor modification. Most customers hardwire the Spiders without issues, they usually connect it to the avionics bus, using a switch.

Input Voltage: 10-32VDC. Ensuring the power supply is capable of delivering at least 1.5 A peak current. Spidertracks recommends protecting the device from damaging spikes by using an in-line   3 A fuse, and if required 18 – 22 AWG wire can be used depending on length.

Please see the file attached to this article to help you to hardwire your Spider to your aircraft.

The USB cable is only used to update the Spider, in order for the unit to connect to the satellite we recommend to hardwire the spider to the power supply of your aircraft, or using the cigar plug of the aircraft.

If you would like to discuss your options with us, please contact us at [e-mail]
