How To Update Heading Change Point for Spider X

Heading Point Change is enabled under Aircraft Settings.

A Heading Change position point will be sent to the website when the Spider passes through the change of direction setting. The Spider records the last heading that was sent, and when the heading changes more than the amount specified under Aircraft Settings on the website it will send a new position report.

Note: This feature is only available for some Spider 6s, 7 and 8s. A firmware update may be required to use this. Please contact [e-mail] for further help.

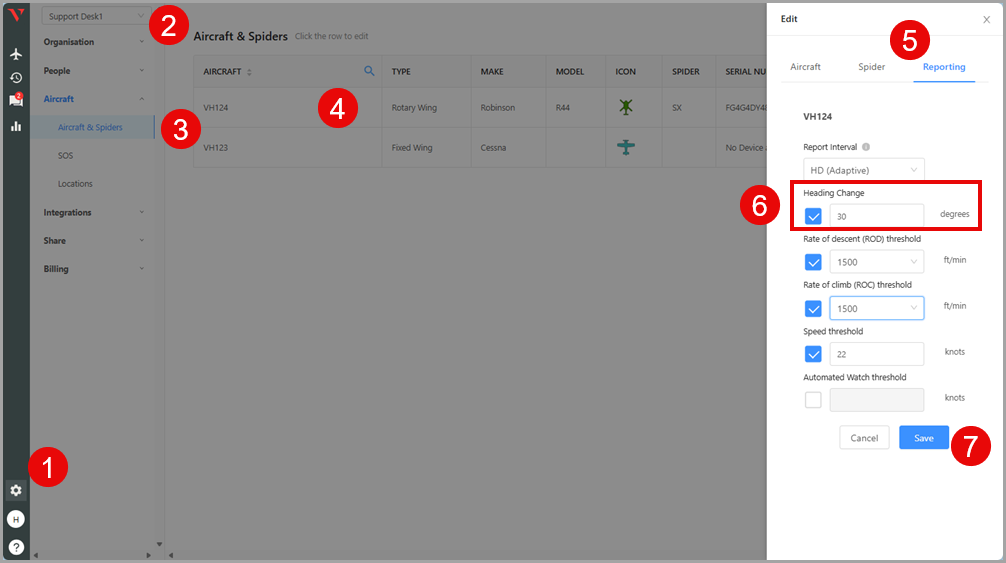

How To Setup Heading Points

1. Select Admin.

2. Select Organisation.

3. Click Aircraft & Spiders - Spider X.

4. Select the Aircraft you would like to enable the speed transition for.

5. Scroll down and click Enable the heading change point setting.

6. Check the Heading Change degrees are set to your preference.

7. Click Save.

Note: The angle limits are between 30º and 90º.

For further assistance setting up Spidertxt please email us at [e-mail]
