Spider X - Power lead & wiring diagram

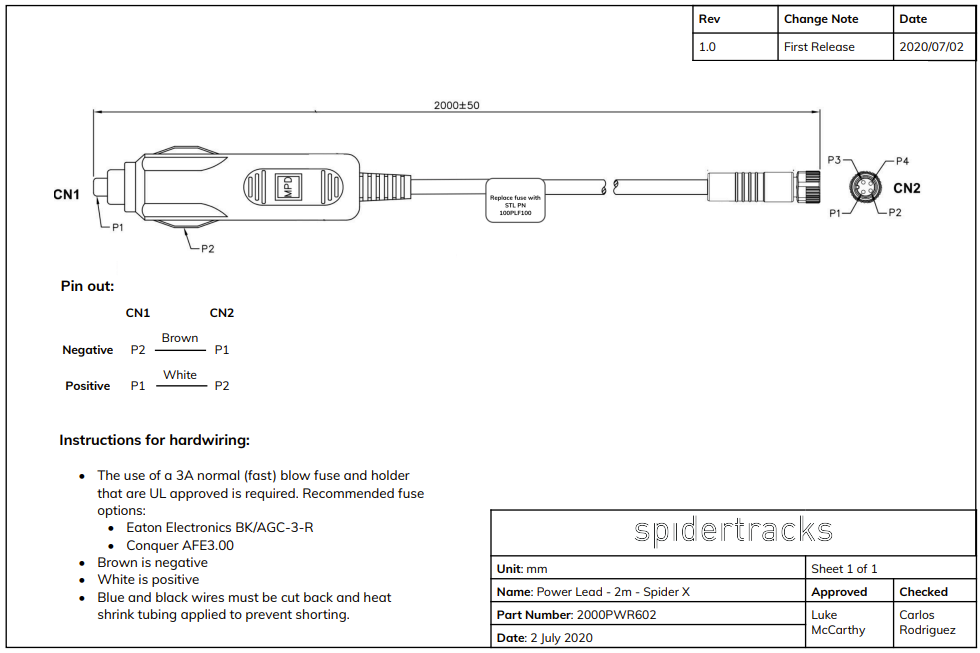

This is the power lead wiring diagram for the Spider X.

If you use the cigarette lighter plug, Spiders are considered a portable device, if you hardwire the Spider, this can be considered a minor modification. Most customers hardwire the Spiders without issues, they usually connect it to the avionics bus, using a switch.

Input Voltage: Class 1 energy source 14 VDC ±15% or 28 VDC ±15%

The Spider X Input Cable is not supported if a Spider X Keypad is already in use. The Spider X only supports one external peripheral at a time.

The USB cable is only used to update the Spider, in order for the unit to connect to the satellite we recommend to hardwire the spider to the power supply of your aircraft, or using the cigar plug of the aircraft.
